Waste water heat exchangers type SUP3 are designated for heat recovery from moderately to highly polluted waste water and are designed for installation in large facilities.
SUP3 is designated for heat recovery from moderately to highly polluted waste water.
Construction: Case and absorbers are produced from 1,5 mm stainless steel DIN 1.4301

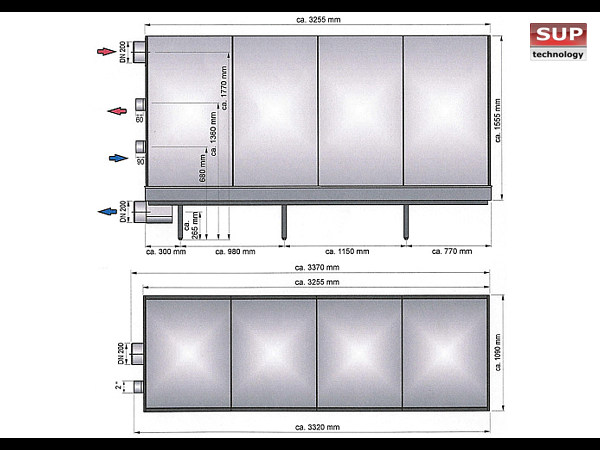

(LxWxH): 3370 x 1090 x 1470 mm including connections
weight: ca 670 kg
connection for waste: DN200
water connection: collar DIN2576
max. temperature: 100oC
max. allowed pressure: 10 bar
max. flow: 4 lit/sec
min. flow: 0,4 lit/sec
max. water pressure: 10 bar
max. waste pressure: without pressure
no. of absorbers: 8
